13.6T Hydraulic Dock Levelers For Forklift Working

13.6T Hydraulic Dock Levelers For Forklift Working At Warehouse Or Loading Bay

• Description:

1. Fixed telescopic dock leveler is a fixed loading equipment and widely used as a bridge between working platform and the truck.
2. It allows the forklift to move conveniently for working. One side of this equipment has the same height with platform, and the other side connecting with the truck and it can be adjustable according to different truck and different carriage in the process of loading .
3. Its size and loading ability can be designed according to customer's requirements. It will be more efficient for warehouse loading or unloading.
4. Lip size: 400mm, 450mm or custom size as yours.

• Fixed dock leveler​​ safety precaution:

1. Emergency button for option
2. Toe guards on both side to protect operation worker feet.
3. Maintainance rod break though the lip fully protect the safety of the serviceman.
4. Bumper block protect the dock leveler it-self when truck reverse to it.
5. Oil tube with steel mesh structure can bear Max oil pressure 48MPA.

• Optional Configuration:

Hydraulic Power Pack:ARGO-HYTOS brand. Or Chinese brand. Electric controller with emergency or without.

• Configurations:

1. Electric system: Schneider contactor, CHINT electrical components
2. Hydraulic System: ARGO-HYTOS brand power pack or Chinese Brand
3. Surface : 6mm,8mm,10mm Antiskid checkered plate
4. Main Support: 8pieces" L" type steel or 8 pieces 10# "I " beam under the deck to supporting.
5. Deck lip platform thickness: 16mm checkered steel plate
6. High-pressure oil hose: Double steel mesh in the rubber hose make its very strong and no leak.

• Noted: Usually the fixed telescopic dock leveler width is 2000mm, it also can be custom as your requirements!
• Main Features:

1. 16mm thickness anti-skid plate make the lip
2. 8 pieces "L" or "C" iron steel to support heavay duty deck.
3. Anti-skid high-strength chequered steel on the top face of the platform and the lip.
4. Full width one -piece lip in hinges type or sleeve type.
5. Heavy duty high pressure hydraulic cylinders
6. First class imported hydraulic power pack, good seal capacity and hold long life
7. Rubber Bumpers to protect machine-self when the truck reverse to dock platform.
8. Full range toe guard to protect user when operater use it.

• Applications:

1. Site: Work Shop, logistic center, big storage centre etc.
2. Fixed hydraulic dock leveler use: Loading/unloading Cargo etc.

• Feedback from client installation site:

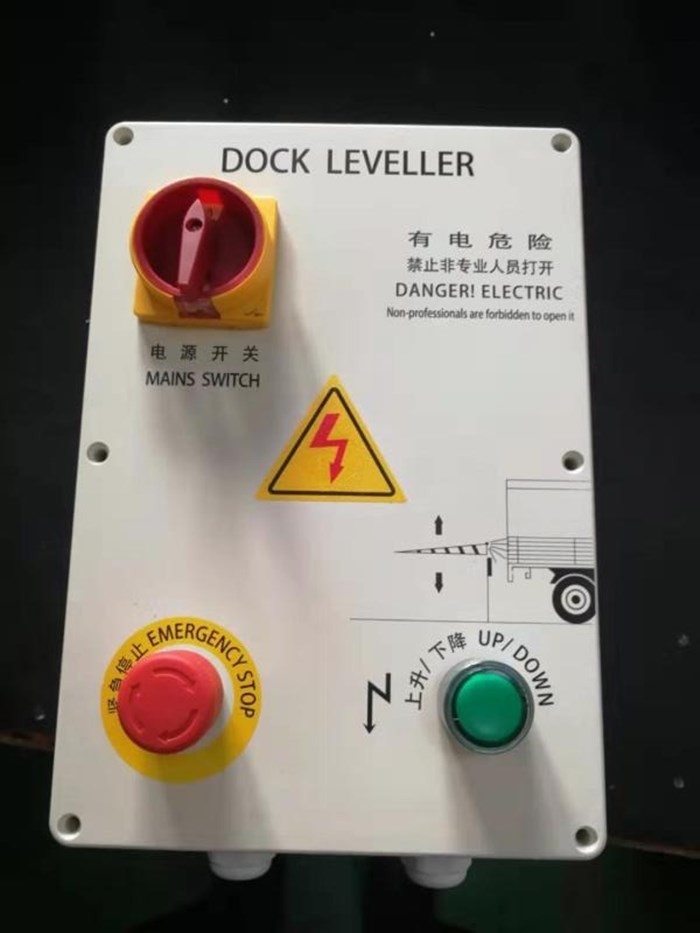

• Dock leveler control box with emergency or without:
